Walnut Shell Speaker Is a Miniature Musical Masterpiece

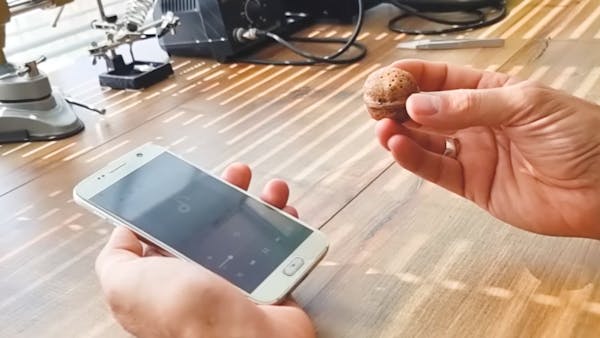

Once you hear the time period “walnut speaker,” you would possibly fairly assume this refers to a speaker cupboard made out of walnut wooden. This construct, by Penguin DIY, as a substitute stuffs a complete Bluetooth speaker setup right into a walnut shell.

As proven within the venture’s video, after consuming the tasty snack inside, Mr. Penguin started working first cleansing out the middle of the shell for a bit extra room. He then turned to miniaturizing and putting in the electronics needed for his speaker to perform.

An ST6845 energy financial institution module was first cannibalized, eradicating parts from the PCB, and hand-soldering them collectively into a way more compact package deal. He then added a tiny LiPo battery together with a USB-C connector, with cautious modifications to permit for a cable to be plugged into the nut-speaker as wanted.

For audio enter, he turned to an MH-M18 Bluetooth PCB, and an HXJ8002 audio amplifier is used to energy a tiny speaker. As a substitute of taking parts off of those boards, Penguin soldered them collectively right into a kind of PCB sandwich, creating simply sufficient room for every thing to suit. He additionally added 4 buttons that activate over completely different resistance values, permitting for onboard management utilizing a single enter.

A star sample of speaker holes on the walnut finishes off the construct properly, and he even faucets it in two locations, permitting the 2 halves to be screwed collectively. When you might or might not need (i.e. have the persistence) to create one thing like this of your individual, the video beneath remains to be an inspirational show of miniaturization talent:
