Digital noses have been first conceived of many years in the past, and since that point the know-how has steadily improved. At present, these units are efficiently being utilized to watch illnesses, detect meals spoilage, acknowledge harmful gasses, and extra. As know-how continues to advance, digital noses maintain the promise of even better purposes in fields resembling healthcare, environmental monitoring, and high quality management in varied industries, making them an important instrument for enhancing security and enhancing our general high quality of life.
To implement their superior functionalities, these synthetic sniffers most sometimes include arrays of sensors, with the information they seize being forwarded to exterior compute sources consisting of analog-to-digital converters, microcontrollers, reminiscences, and different processors. For probably the most correct outcomes, the sensor knowledge is often processed by machine studying algorithms that assist to make sense of it.
This separation of sensing, processing, and reminiscence — the standard von Neumann computing structure — introduces sure limitations into the ensuing synthetic noses. They have a tendency to exhibit, for instance, excessive ranges of vitality consumption, extreme latency, and even a lack of knowledge. For a lot of purposes, these components are roadblocks that stop the adoption of the know-how.

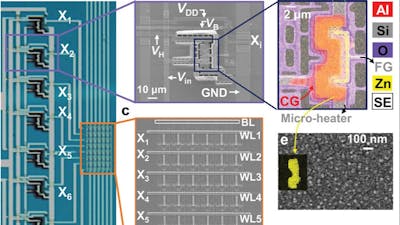

Evaluating organic olfactory programs to the substitute chip (📷: G. Jung et al.)
To ensure that the sphere to proceed transferring ahead, a brand new structure might be wanted that addresses the current technological limitations. Not too long ago, a workforce of researchers at Seoul Nationwide College in Korea have put ahead a possible answer. They’ve developed an digital nostril chip with near-sensor computing that displays low energy consumption, minimal latency, and no lack of knowledge. This machine was examined and proven to be extremely correct in detecting meals spoilage.
The researchers’ machine was designed to imitate organic olfactory programs. It consists of zinc oxide sensing movies that may detect even very low concentrations (0.01 components per million) of hydrogen sulfide and ammonia gasses. These gasses are necessary markers of spoilage in high-protein meals like meat.
When the zinc oxide movies work together with the goal molecules, it triggers a cost switch that’s directed into an amplifier array that enhances the sign. The amplified sign is then fed into an AND-type nonvolatile reminiscence (NVM) array on the identical chip that may be programmed to carry out in-memory computations. Within the NVM array, olfactory sensing knowledge are linearly mixed and multiplication and accumulation operations are carried out for processing and interpretation. Moderately than uncooked sensor knowledge, significant details about the presence of particular scents is the output from the chip.
The factitious nostril chip may be modified, by altering the sensing materials, to detect the presence of many sorts of scents. The preliminary prototype, nonetheless, was tailor-made to acknowledge gasses that point out the freshness degree of meats, like hen. By recognizing the goal gasses which are current, the chip makes use of an algorithm that linearly combines the 2 gasoline concentrations to categorise meat as recent, edible, spoiled, or fully spoiled.
The machine was examined on spoiling hen (📷: G. Jung et al.)
To check the system, the sensor chip was positioned close to a hen tenderloin that was left at room temperature for an prolonged time frame. Because the meat went via varied levels of spoilage, it launched the goal gasses in several concentrations and proportions. Over the course of a twelve hour interval, the sensor confirmed the hen transition from recent to fully spoiled. And in contrast to visible inspection, the machine was proven to be able to detecting when the hen was something lower than recent — visible appearances are solely ample to detect fully spoiled hen.
The workforce believes that the accuracy and utility of their digital nostril chip may be additional enhanced by incorporating the detection of quite a lot of unstable natural compounds. Hopefully we’ll see additional advances sooner or later that enhance the efficiency of this proof of idea, however the strategies already demonstrated are anticipated to maneuver the sphere ahead.
