The arrival of available CNC manufacturing has made creating your personal {custom} gears out of plastic comparatively simple. Nonetheless, for those who favor to make use of steel or different CNC-cut supplies on your software, then this gear reducing machine from Mr Modern might be a superb choice. Moreover permitting using metals, it additionally manufactures gears extraordinarily quick, probably having a complete gear performed earlier than you’d be capable of put the primary layer down on a 3D printer.

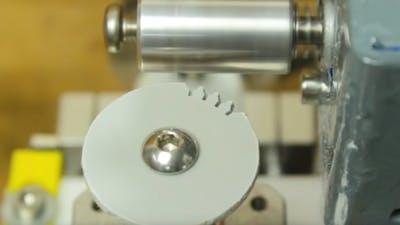

The design boils right down to a two-axis CNC system, with a DC motor that spins a custom-cut blade. A geared stepper motor and rails setup acts as a linear x-axis, and strikes the gear-in-progress workpiece into and out of reducing place. A second stepper motor holds the workpiece through a coupler, and rotates the gear to provide the variety of tooth required.

The unit is managed by a compact multi-purpose PCB based mostly on an ATmega328P-AU. This drives the reducing DC motor through a TC1508S chip, and the 2 stepper motors by means of plug-in A4988 boards. Consumer interface is achieved utilizing a touchscreen, which allows Mr Modern to enter the variety of gear tooth.

The precise gear form is dictated by the reducing bit, which might function one other consumer variable that may be (mechanically) personalized. This machine might be glorious inspiration for different {custom} CNC gadgets, and extra particulars can be found within the construct video and its description.
