Researchers from the École Polytechnique Fédérale de Lausanne (EPFL) have created the world’s largest-scale in-memory processor to primarily based on a two-dimensional semiconductor materials — a step on the trail to extra environment friendly computation, notably for computationally-hungry machine studying (ML) and synthetic intelligence (AI) on gadgets on the fringe of the Web of Issues (IoT).
“Led by the rise of the web of issues, the world is experiencing exponential development of generated information. Knowledge-driven algorithms comparable to sign processing and synthetic neural networks are required to course of and extract significant data from it,” the analysis staff explains within the summary to its paper.
A 2D semiconductor constructed into floating-gate transistors (renders a, b, optical {photograph} c) may spell a path to extra environment friendly computing on the edge. (📷: Marega et al)
“They’re, nevertheless, significantly restricted by the standard von Neumann structure with bodily separation between processing and reminiscence, motivating the event of in-memory computing,” Kis continues. “This rising structure is gaining consideration by promising extra energy-efficient computing on edge gadgets.”
In conventional von Neumann computing, named for John von Neumann’s contributions to the 1945 paper First Draft of a Report on the EDVAC, the machine is made up of a central processing unit linked to a separate reminiscence unit — and each single bit that will get processed wants to maneuver from the exterior reminiscence unit to the processor and again once more.
Coupled with a bottleneck within the design inflicting an incapacity to carry out information operations and instruction fetch operations concurrently, there’s room for effectivity enhancements — which is the place in-memory computing is available in.
The preliminary prototype has proven value as an accelerator for vector-matrix multiplication operations. (📷: Marega et al)
An in-memory processor, because the identify implies, does its work immediately on the saved information with out having to maneuver it to a central processor and again once more. “At the moment, there are ongoing efforts to merge storage and processing right into a extra common in-memory processors that include components which work each as a reminiscence and as a transistor,” explains mission lead Andras Kis. Within the case of Kis and colleagues, that materials is molybdenum disulfide (MoS₂), which the staff has used to construct a two-dimensional transistor — the preliminary prototype of which was shaped from a layer of MoS₂ peeled from a crystal utilizing Scotch tape.
The staff’s large-scale chip serves a proof of idea for these novel transistors, combining 1,024 of them with floating gates to behave as a reminiscence — immediately controlling the conductivity of the transistor to which they’re hooked up. “By setting the conductivity of every transistor, we will carry out analog vector-matrix multiplication in a single step by making use of voltages to our processor and measuring the output,” Kis says, with the staff demonstrating its use for vector-matrix multiplication and sign processing.
“This performance and integration,” the staff claims in conclusion, “symbolize a milestone for in-memory computing, permitting in-memory processors to reap all the advantages of 2D supplies and [bring] new performance to edge gadgets for the Web of Issues.”
The staff has additionally used the prototype as a discrete sign processor with, it claims, excessive reliability. (📷: Marega et al)
It is the size of the system which is a breakthrough for the staff: with 1,024 transistors on the chip forming a 32×32 vector-matrix multiplier, the researchers’ system is the biggest but constructed. That does not imply it should be troublesome to construct, although: “The important thing advance in going from a single transistor to over 1,000 was the standard of the fabric that we will deposit,” Kis explains.
“After quite a lot of course of optimization, we will now produce total wafers coated with a homogeneous layer of uniform MoS₂. This lets us undertake trade normal instruments to design built-in circuits on a pc and translate these designs into bodily circuits, opening the door to mass manufacturing.”
The staff’s work has been revealed beneath closed-access phrases within the journal Nature Electronics; an open-access preprint is on the market on Cornell’s arXiv server.

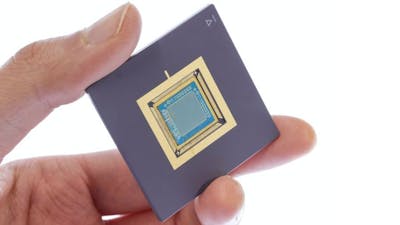

Essential article picture courtesy of Alan Herzot/EPFL.
